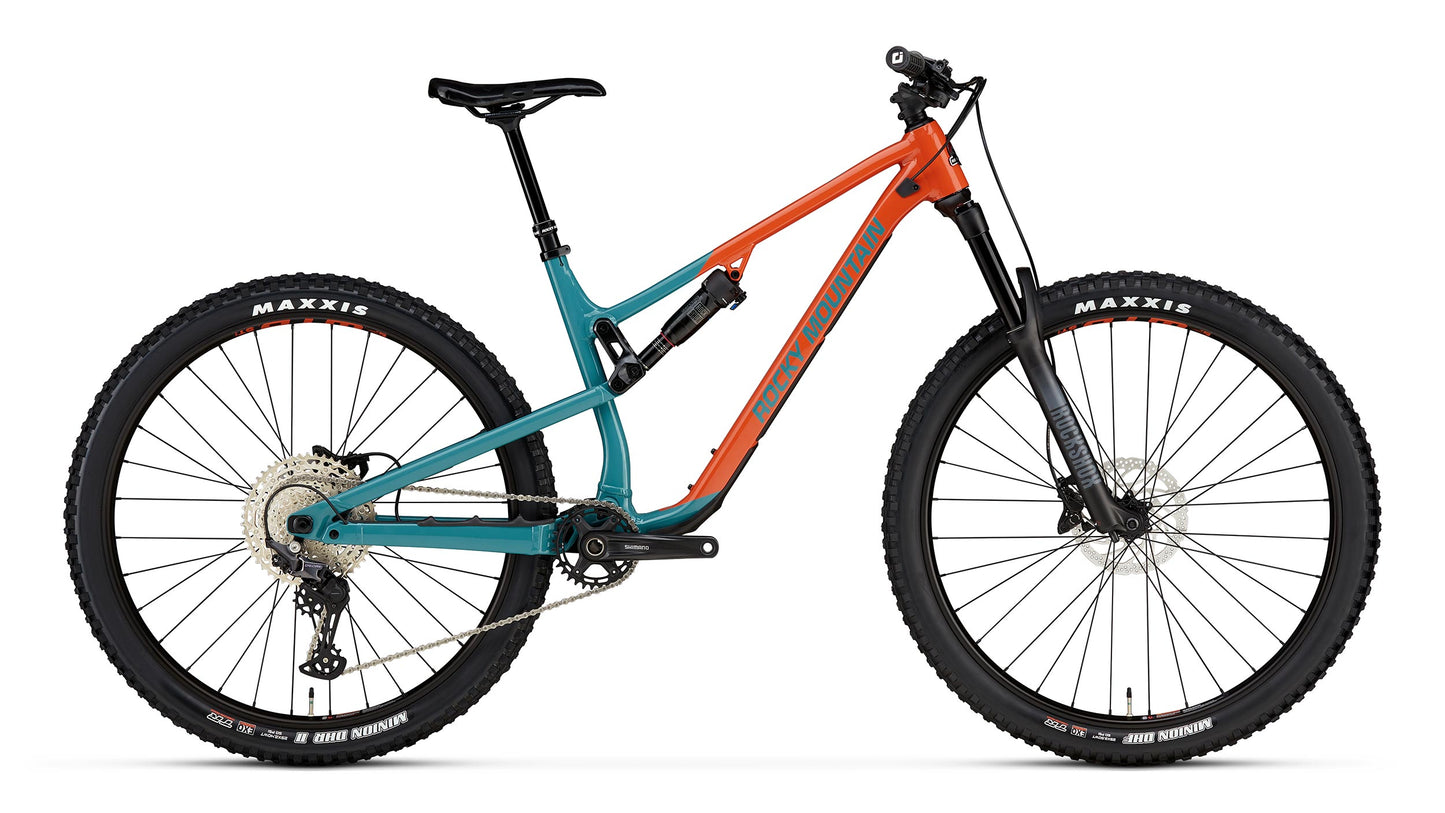

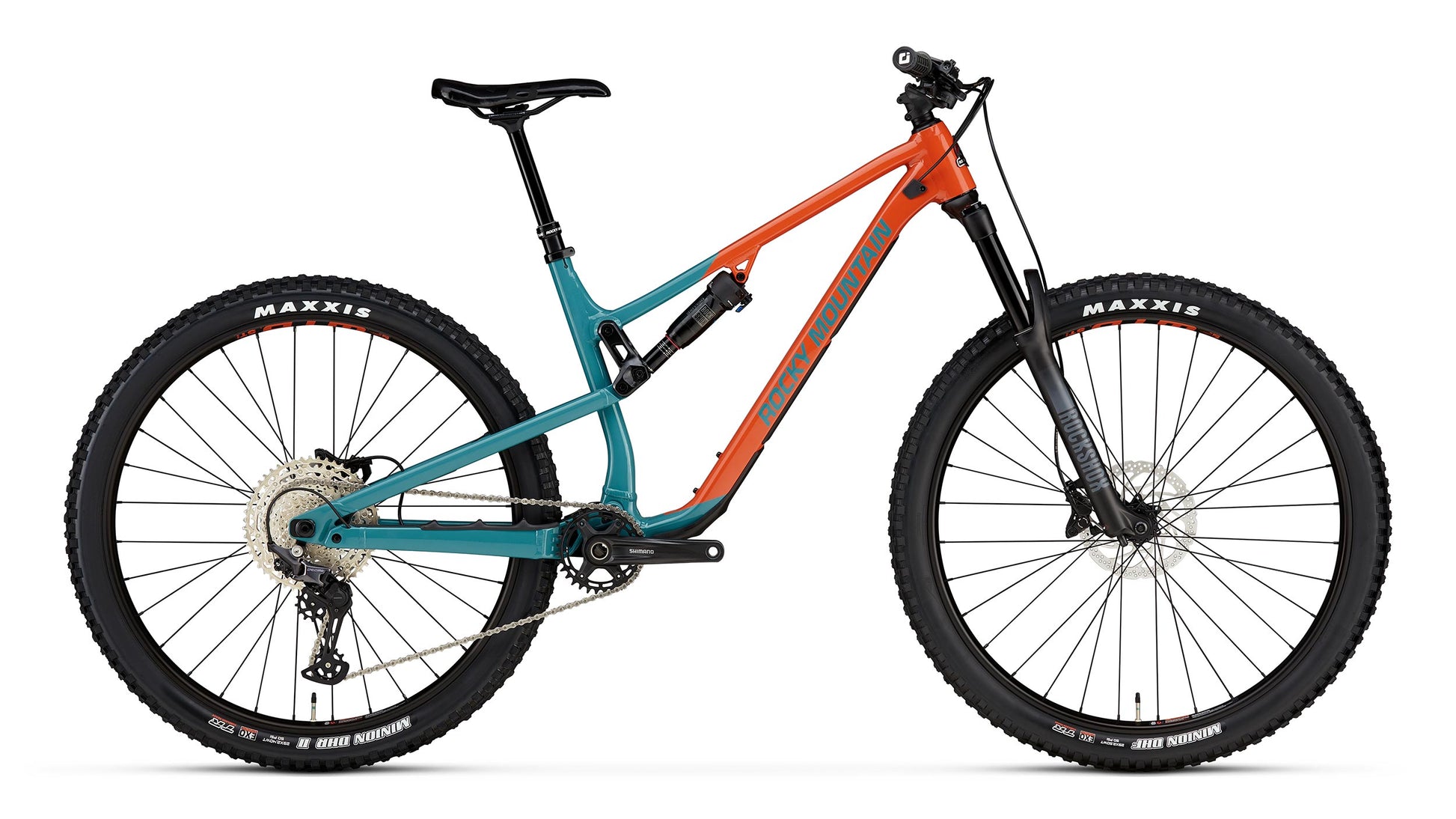

2023 Rocky Mountain Instinct A30
2023 Rocky Mountain Instinct A30
Regular price
$2,949.99 AUD
Regular price
$4,199.99 AUD
Sale price
$2,949.99 AUD
Unit price
/
per
Taxes included.
Shipping calculated at checkout.
Couldn't load pickup availability
The 2023 Rocky Mountain Instinct A30 is your go-to trail companion, designed for versatility and confidence across diverse terrains. This trail bike is perfect for tackling technical descents while ensuring a smooth, efficient ride on challenging climbs. The updated geometry, enhanced suspension kinematics, and premium components make the Instinct A30 an excellent choice for riders seeking performance and reliability.
Key Features:
- RIDE-9™ Adjustable Geometry: Fine-tune your bike's ride characteristics to suit your preferences and terrain with nine adjustable settings.
- FORM™ Alloy Frame: A durable, lightweight aluminum frame featuring internal cable routing, press-fit bottom bracket, and ISCG05 mounts.
- Suspension: Equipped with a RockShox 35 Gold RL fork (150mm travel) and RockShox Deluxe Select+ rear shock (140mm travel) for superior trail performance.
- Tubeless-Ready Wheels: WTB ST i30 TCS 2.0 rims paired with Maxxis Minion DHF and DHR II tires offer excellent grip and puncture resistance.
- Shimano Drivetrain: Smooth and precise shifting with a Shimano Deore 12-speed groupset, including a 32T crankset and Shimano M6100 chain.
- Reliable Braking: Shimano MT410 hydraulic disc brakes provide exceptional stopping power and modulation.
Specifications:
- Frame: FORM™ Alloy, 140mm travel
- Fork: RockShox 35 Gold RL, 150mm travel
- Rear Shock: RockShox Deluxe Select+, size-specific tune
- Wheel Size: 29” (XS also compatible with 27.5”)
- Hubs: Novatec D462 Boost 148mm
- Tires: Maxxis Minion DHF 2.5 WT EXO (front), Maxxis Minion DHR II 2.4 WT EXO (rear)
- Drivetrain: Shimano Deore 12-speed
- Brakes: Shimano MT410 hydraulic disc brakes
- Cockpit: Rocky Mountain-branded handlebar, stem, and grips
- Saddle: WTB Volt
Size Chart (in cm):
| Size | Rider Height | Effective Top Tube | Head Tube Angle | Seat Tube Angle | Chainstay Length | Wheelbase |
|---|---|---|---|---|---|---|
| XS | 152–162 | 56.8 | 65.9°–67.1° | 75.1°–76.3° | 43.2 | 113.7–114.9 |
| SM | 162–170 | 59.3 | 65.9°–67.1° | 75.1°–76.3° | 43.2 | 116.2–117.5 |
| MD | 170–179 | 61.6 | 65.9°–67.1° | 75.1°–76.3° | 43.5 | 119.0–120.2 |
| LG | 179–188 | 63.9 | 65.9°–67.1° | 75.1°–76.3° | 43.5 | 121.3–122.6 |
| XL | 188–198 | 66.1 | 65.9°–67.1° | 75.1°–76.3° | 43.8 | 123.5–124.8 |
