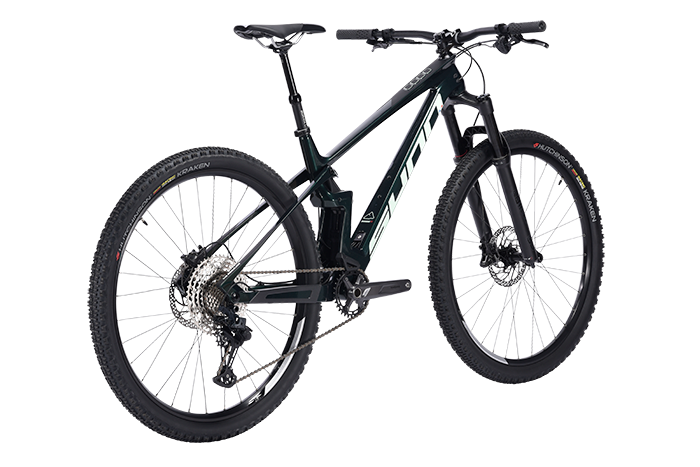

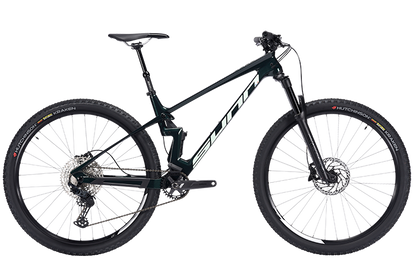

Sunn Bicycles Shamann TR S1
Sunn Bicycles Shamann TR S1
Couldn't load pickup availability
The Sunn Shamann TR S1 is a trail-ready mountain bike designed to tackle diverse terrains with precision and control. With its carbon monocoque T800 frame, RockShox suspension, and SRAM drivetrain, this bike offers a perfect balance of lightness, durability, and performance. It is ideal for riders seeking a reliable companion for technical climbs, rugged descents, and adventurous trails.
Key Features
- Premium Carbon Frame: SHAMANN Carbon Monocoque T800 HM for lightweight strength and durability.
-
Trail-Tuned Suspension:
- Fork: RockShox 35 Gold RL with 130mm travel for responsive handling.
- Shock: RockShox Deluxe Select R providing 115mm rear travel for superior trail performance.
- SRAM NX Eagle Drivetrain: Delivers smooth and precise 12-speed shifting with a wide range (11-50T cassette).
- Hydraulic Braking: SRAM Level brakes with 180mm rotors ensure powerful and consistent stopping power.
- 29-inch Wheels: Equipped with MACH1 TORKX DISC 29" rims and Vittoria Barzo TLR tires for optimal grip and stability.
- Trail-Optimized Geometry: Balanced riding position for confident descents and efficient climbing.
- Dropper Post: Satori Dropper seat post for effortless on-the-fly saddle height adjustment.
Sunn Bicycles: A Legacy of Excellence
Sunn Bicycles, founded in 1982 in France, is celebrated for its innovative approach to bike design and engineering. From dominating downhill racing in the 1990s to crafting cutting-edge bikes today, Sunn continues to inspire riders worldwide. Their commitment to quality and performance makes them a standout brand in the cycling community.
Specifications
- Frame: SHAMANN Carbon Monocoque T800 HM, Boost, PF92, 115mm travel.
- Fork: RockShox 35 Gold RL, DebonAir TA, Boost, 130mm.
- Rear Shock: RockShox Deluxe Select R, 190x45mm.
-
Drivetrain:
- Rear Derailleur: SRAM NX Eagle, 12-speed.
- Crankset: SRAM X1 DUB, 32T.
- Cassette: SRAM Eagle, 11-50T.
- Shifter: SRAM NX Eagle.
- Brakes: SRAM Level, 180mm front and rear rotors.
- Wheels: MACH1 TORKX DISC, 29".
- Tires: Vittoria Barzo 29x2.25 TLR.
- Handlebar: VR 6061, 760mm.
- Stem: 45mm, 0° rise, 31.8mm clamp diameter.
- Seat Post: Satori Dropper, 31.6mm, 100mm travel.
- Saddle: VR CR-MO by DDK.
- Weight: 13.65kg.
Geometry Chart (in cm)
| Size | S | M | L |
|---|---|---|---|
| Seat Tube (ST) | 40.0 | 45.0 | 50.0 |
| Top Tube (TT) | 57.0 | 60.0 | 63.0 |
| Wheelbase (WB) | 113.2 | 116.3 | 119.5 |
| Head Angle (HA) | 68° | 68° | 68° |
| Seat Angle (SA) | 73° | 73° | 73° |
| Chainstay (RC) | 43.9 | 43.9 | 43.9 |
| BB Height (BB) | -3.0 | -3.0 | -3.0 |
| Head Tube (HT) | 10.0 | 11.0 | 12.0 |
| Standover | 81.5 | 81.5 | 81.5 |
| Reach | 40.5 | 43.5 | 46.3 |
| Stack | 60.6 | 61.5 | 62.5 |
